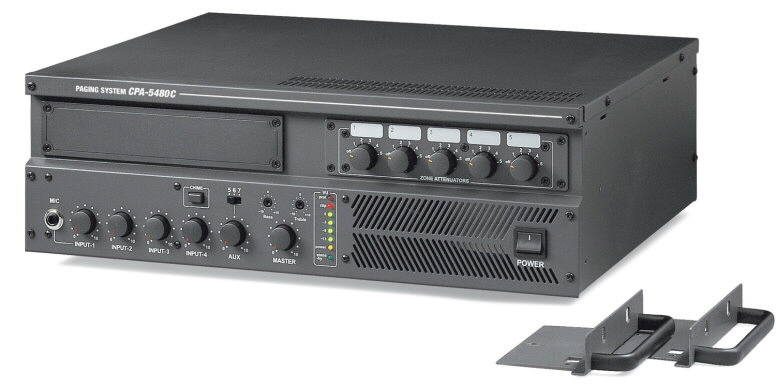

ELA Centrale CPA 5:  5 con, 5 vhodov, Gong, ...

CPA-5120C  / 120W RMS na 5 con

CPA-5240C  / 240W RMS na 5 con

CPA-5480C  / 480W RMS na 5 con

Description

The PA center of the „CPA-5000 Series“ is available in 3 power classes: 120 W, 240 W and 480 W. The units include 5 100 V and 70 V  speaker circuits, which can be switched and controlled separately.

They feature chime, siren, phantom power and priority switching and are well-suited for professional audio applications.

Features

• The PA center operates on mains power (230 V) or
• 24 V DC.
• The speaker outputs are available as 100 V and 70 V as well as 8 ohms (low-impedance) outputs.
• All models have 5 speaker circuits which can be controlled separately on the front panel.
• All microphone inputs are balanced and have switchable phantom power. Inputs 2, 3 and 4 can be switched to line.
• Mic input 1 has an adjustable electronic priority control.
• The AMP-IN and PRE-OUT sockets on the rear allow cascading of further  amplifiers and insertion of other units such as equalizers.
• The two-tone chime and the siren can be remote- controlled and can be adjusted on the rear.
• Input 1 has voice-activated priority override, inputs 2-3-4 have contact-activated priority over AUX 5-6-7.
• The special MS-050P microphone station is connected through a 4-pin  screw-type connector (a maximum of 3 microphone stations can be  connected). It has a function to enable pre-announcement chime and  priority.
• A special feature of all the models of this series is  the option for integrating a sound source module into the unit. An empty compartment is provided for the installation of an additional module.
