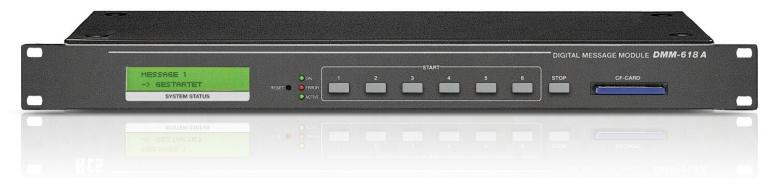

DMM-618A -  Digital Message module, 1 RU, Monitored text memory, advertising text unit

Description

DMM-618A digital message module is a universal flash memory  module to hold MP3 files. It can be used either as advertising  announcement tool or as message bank for voice evacuation systems.  Because its flash memory is permanently monitored DMM-618A acts as an  ideal addition to any existing voice evacuation or paging system.
The front panel display informs about the operational state of DMM-618A at  all times. Fault indications are also offered with a changeover contact  to communicate with external units.
Messages can be started by  pressing the keys 1 to 6 on the front panel. An additional stop button  can be used to manually end an announcement. For remote triggering  DMM-618A offers 18 dry contacts on its rear side. Up to 18 messages can  be triggered remotely, for example from an system clock (e.g. PTC-240D), from AAS-100A or any other NO contact. A jumper is used to switch  between impulse triggering or the permanent closure of a contact. The  running time and quantity of text messages is only limited by the size  of the CF memory card. Cards with a capacity up to 8 GB can be used with DMM-618A.

Features

• Ideally suited as an addition to existing voice evacuation and  paging systems. Combines perfectly with AAS-100A, TIF-404C, PTC-240 D  and all system components of the VARES-Series range.
• Can be combined with VARIO-LINE desktop mixing amplifiers and 3rd party paging systems.
