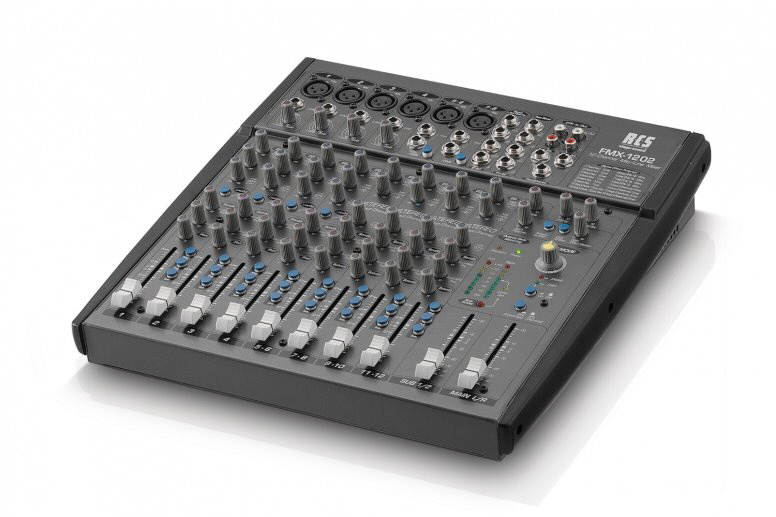

STAGE-SOUND FMX-1202 - Audio Mixer, 12 Kanalov
|
|
|
|
AUDIO MIKSER: FMX-1202
Vhodi CH1-6: (mono)
Mic In: -55dBu (1,38mV) 50-600 Ohm,
Vhodi CH5-12: (stereo)
Vhodna občutljivost: MIC -55dBu (mono) 1,3 kOhm (symetrični), LINE -35dBu (mono) -20dBu (stereo) Vsi drugi vhodi >10 kOhm
Izhodna občutljivost: Tape Output 1,0kOhm, FX-Returns ali Aux: 10kOhm, vsi drugi izhodi <100 ohm="" p="">
Signal šum: bolje kot 90dB
Frekvenčni razpon: 20Hz – 60kHz +0 / -1,5dB
Nastavitev zvoka Channel
Visoki toni: 12kHz shelving ±15dB
Srednji toni: 3,0kHz peaking ±12dB
Nizki toni: 80Hz shelving ±15dB
Low Cut: 18dB/Okt. @ 75Hz
Fantomsko napajanje: +48V DC
Napajanje: 220V – 240V/AC, 50~60 Hz
Moč: ca. 22W
Mere / Teža: Š 305 x V 354 x G 72 mm 4,7 kg
INPUT-SECTION
Top-quality mixer with 6 mono input channels, which can be supplied as MIC over XLR sockets or as LINE over 6.3 mm jack sockets. Channels 5/6 & 7/8 may also be supplied as stereo input channels, each over two 6.3 mm jack sockets. Channels 9/10 & 11/12 can be operated both mono (L) and stereo (L/R) over 6.3 mm jack sockets.
The mono channels 1-4 have amplification pre-controls for MIC “Gain” and for LINE “Trim” as well as a 3-band CH-EQ and a low-cut switch (75 Hz). Channels 5/6 & 7/8 feature a pad switch (-20 dB) and a 3-band CH-EQ. Channels 9/10 & 11/12 are equipped with a 3-band CH-EQ. There are panorama controls for mono and balance controls for stereo.
Pre-listening of all channels is possible over an adjustable headphone output as well as the “Solo function” of the CH. The mixer also features a pre-fader and a post-fader AUX way as well as allocation selector switches for Main L/R per channel and SUB 1/2 for the alternative total output.
Phantom power is centrally switchable for all MIC inputs (+48 V DC).
MASTER-SECTION
Two stereo output sockets (XLR balanced and 6.3mm jack unbalanced) for main output over stereo fader (L+R) with LED meter as well as two alternative output sockets (6.3mm jack unbalanced) over SUB-1/2-fader.
2 RCA input sockets with input control and 2 RCA output sockets for 2-track IN/OUT per L/R. 2 unbalanced AUX sends and 2 adjustable AUX returns are available. The AUX returns can be switched on to the monitor way.
HIGHLIGHTS
A switchable digital effects board allows adding 16 high-grade effects with an adjustable DSP master to the sum and with a switch to the monitor way also. This DSP is switchable ON/OFF by a foot switch.
A mono out jack socket with level control makes another pre-amplified signal output possible. The mixer FMX-1202 FX is designed to be tabletop unit as well as for integration into 19˝ racks or flight-cases. The 19˝ mounting angles „RMK-12” (8 RU) are optionally available.
.
|
|
.
|
|
.
|
|
.
|
|

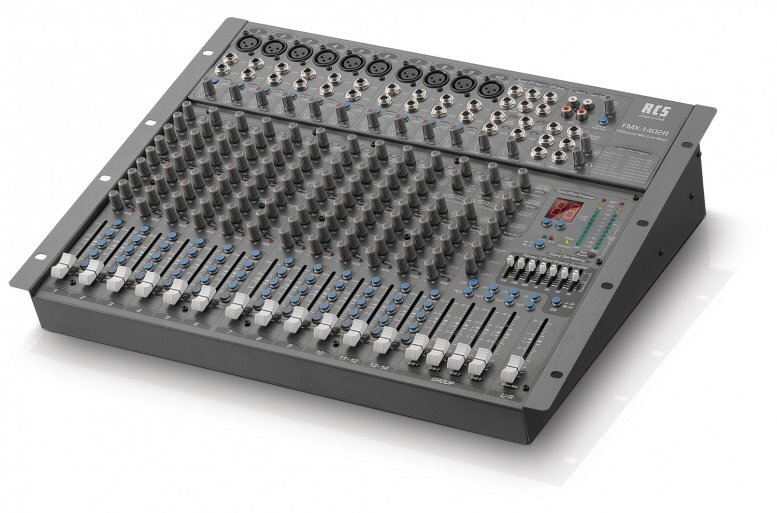

STAGE-SOUND FMX-1402 R - Audio Mixer, 14 Kanalov, za vgradnjo v RACK ohišje
|
|
|
|
AUDIO MIKSER: FMX-1402 R
Vhodi CH1-10: (mono)
Mic In: -55dBu (1,38mV) 50-600 Ohm,
Vhodi CH11-14: (stereo)
Vhodna občutljivost: MIC -55dBu (mono) 1,3 kOhm (symetrični), LINE -35dBu (mono) -20dBu (stereo) Vsi drugi vhodi >10 kOhm
Izhodna občutljivost: Tape Output 1,0kOhm, vsi drugi izhodi <100 ohm="" p="">
Signal šum: bolje kot 90dB
Frekvenčni razpon: 20Hz – 60kHz +0 / -1,5dB
Nastavitev zvoka Channel
Visoki toni: 12kHz shelving ±15dB
Srednji toni: 3,0kHz peaking ±12dB
Nizki toni: 80Hz shelving ±15dB
Low Cut: 18dB/Okt. @ 75Hz
Fantomsko napajanje: +48V DC
Napajanje: 220V – 240V/AC, 50~60 Hz
Moč: ca. 50W
Mere / Teža: Š 483 x V 370 x G 140 mm 7,1 kg
INPUT-SECTION
This mixer features 10 mono input channels, which can be supplied as MIC over XLR sockets or as LINE via
6.3 mm jack sockets. Channels 11/12 & 13/14 can be operated over 6.3 mm jack sockets both mono (L) and stereo (L/R).
The mono channels 1-10 have amplification pre-controls for MIC „Gain“ and for LINE „Trim“ as well as a 4-band channel equalizer and a low cut switch (18 dB/oct. @ 75 Hz). Channels 11/12 & 13/14 are equipped with LINE trim controls (±20 dB) and a 3-band CH-EQ. There are panorama controls for mono and balance controls for stereo.
Pre-listening of all channels is possible via an adjustable headphone output as well as the “Solo function” of the CH. 2 pre-fader and 2 post-fader AUX ways and allocation selector switches for CH mute, sub 1/2, sub 3/4 and main L/R per CH.
CH-insert for channels 1-10 PRE-fader/PRE-EQ and master L/R-insert PRE-graphic-EQ (e.g. feed-in point for compr./lim./gate). CH 1-8 offer direct-out jack sockets.
Phantom power is centrally switchable for all MIC inputs (+48 V DC).
MASTER-SECTION
For main output are two stereo output sockets, which can be supplied by a stereo master fader (L+R) with LED meter display and a switchable 7-band graphic-EQ. The section also features the group-faders SUB-1-4 with alternative output sockets and L/R separate connection to the master sum. The mono main out (XLR) with switchable 75 Hz LPF serves as subwoofer output.
The master section also has two RCA input sockets with level input controls, switchable to the master, and two RCA output sockets (2 TR IN/OUT per L/R). Master-send controls are available for the AUX ways respectively.
HIGHLIGHTS
A switchable 24-bit digital effects board allows adding 99 high-grade effects with 3 adjustable master-returns to the sum as well as to the 2 monitor ways. The DSP is comfortably to handle over a digital display and an up/down push-button and foot switch. “Stereo output jack sockets” with level controls enable another pre-amplified signal output.
.
|
|
.
|
|
.
|
|
.
|
|

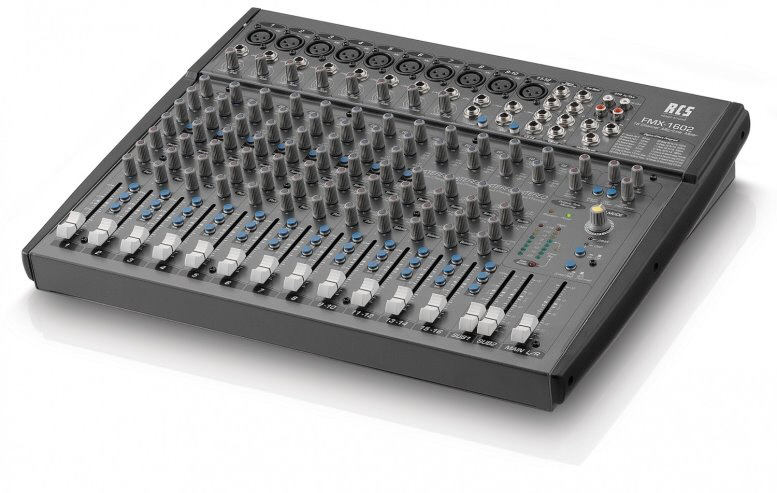

STAGE-SOUND FMX-1602 - Audio Mixer, 16 Kanalov
|
|
|
|
AUDIO MIKSER: FMX-1602
Vhodi CH1-10: (mono)
Mic In: -55dBu (1,38mV) 50-600 Ohm,
Vhodi CH9-16: (stereo)
Vhodna občutljivost: MIC -55dBu (mono) 1,3 kOhm (symetrični), LINE -35dBu (mono) -20dBu (stereo) Vsi drugi vhodi >10 kOhm
Izhodna občutljivost: Tape Output 1,0kOhm, vsi drugi izhodi <100 ohm="" p="">
Signal šum: bolje kot 90dB
Frekvenčni razpon: 20Hz – 60kHz +0 / -1,5dB
Nastavitev zvoka Channel
Visoki toni: 12kHz shelving ±15dB
Srednji toni: 3,0kHz peaking ±12dB
Nizki toni: 80Hz shelving ±15dB
Low Cut: 18dB/Okt. @ 75Hz
Fantomsko napajanje: +48V DC
Napajanje: 220V – 240V/AC, 50~60 Hz
Moč: ca. 25W
Mere / Teža: Š 411 x V 354 x G 72 mm 5,7 kg
INPUT-SECTION
Top-quality mixer with 10 mono input channels, which can be supplied as MIC over XLR sockets or as LINE over 6.3 mm jack sockets. Channels 9/10 & 11/12 may also be supplied as stereo input channels, each over two 6.3 mm jack sockets. Channels 13/14 & 15/16 can be operated both mono (L) and stereo (L/R) over 6.3 mm jack sockets.
The mono channels 1-8 have amplification pre-controls for MIC „Gain“ and for LINE „Trim“ as well as a 4-band CH-EQ and a low cut switch (75 Hz). CH 9/10 & 11/12 feature a pad switch (-20 dB) and a 3-band CH-EQ. CH 13/14 & 15/16 are equipped with a 3-band CH-EQ. There are panorama controls for mono and balance controls for stereo.
Pre-listening of all channels is possible over an adjustable headphone output as well as the “Solo function” of the CH. The mixer also features a pre-fader and a post-fader AUX way as well as allocation selector switches for Main L/R per channel and additionally SUB 1/2 for the alternative total output.
CH insert for channel 1 and 2 PRE-fader/PRE-EQ allows feeding in external signals (e.g. compr./lim./gate).
Phantom power is centrally switchable for all MIC inputs (+48 V DC).
MASTER-SECTION
Two stereo output sockets for main output can be supplied by a stereo master fader (L+R) with LED meter display. Two alternative output sockets (6.3 mm jack unbalanced) are fed over separately adjustable SUB-1- and SUB-2-faders.
2 RCA input sockets with level input controls and two RCA output sockets for 2-track IN/OUT per L/R. 2 unbalanced AUX sends and 2 adjustable AUX returns are available. The AUX returns can be switched on to the monitor way.
HIGHLIGHTS
A switchable digital effects board allows adding 16 high-grade effects with an adjustable DSP master to the sum and with a switch to the monitor way also. An additional mono out jack socket with a level control enables another pre-amplified signal output. FMX-1602 is designed to be tabletop unit or for integration into 19˝ racks. The 19˝ mounting angles „RMK-16” (8 RU) are optionally available.
.
|
|
.
|
|
.
|
|
.
|
|

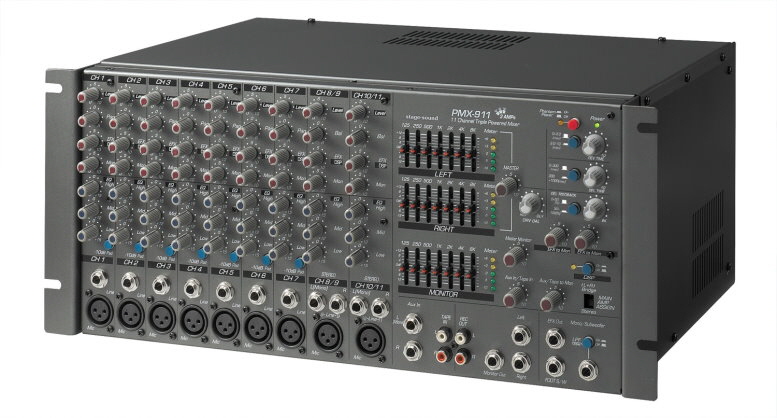

STAGE-SOUND PMX-911R - POWER Mixer, 3 x 300W - 11 Kanalov
|
|
|
|
POWER MIKSER: PMX-911 R - 3 x 300W
Vhodi CH1-9: (mono)
Vhodi CH8-11: (stereo)
Vhodna občutljivost: MIC: -50dBu; LINE (1-7): -20dBu; LINE (8-11): -10dBu; AUX: -10dBu; TAPE: -10dBu
Zmogljivost na 4 Ohm: 3 x 300 (L/R Monitor)
Zmogljivost na 8 Ohm: 3 x 200 (L/R Monitor)
Izhodna občutljivost: Main-Out: +4dBu; Monitor-Out: +4dBu; EFX-Out: +4dBu; Rec-Out: -10dBu
Signal šum: bolje kot 90dB
Frekvenčni razpon: 20Hz – 20kHz +1 / -2dB
Nastavitev zvoka Channel
Visoki toni: 12kHz shelving ±15dB
Srednji toni: 2,5kHz peaking ±12dB
Nizki toni: 80Hz shelving ±15dB
2 x Master & 1 x Monitor 7-Band-Graphic-Equalizer: 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz
Fantomsko napajanje: +48V DC
Napajanje: 220V – 240V/AC, 50~60 Hz
Moč: ca. 1.350W
Mere / Teža: Š 483 x V 205 x G 278 mm 15,3 kg
INPUT-SECTION
Professional power-mixer with nine mono LINE inputs (CH 8/9 & CH 10/11 also adaptable as stereo) over 6.3 mm jack socket and nine mono MIC inputs over XLR socket, which can be transmitted to monitor out, record out and master out (L/R or bridge L+R).
2 stereo inputs (TAPE in as RCA socket and AUX in 6.3 mm as jack socket) with combined volume control can be transmitted to the master section. Another combined control makes it possible to additionally put these two signals on the monitor way.
All inputs are equipped with input level, PAN, effect (DSP), monitor as well as highs, mids, and lows controls.
PAD switches (-10 dB) for CH 1-7 in order to damp the input signal.
Phantom power for all MIC inputs (+48 V DC) centrally switchable.
AMPLIFIER-SECTION
Apportionment of the 3 integrated amplifiers:
2 x 300 W @ 4 ohms for stereo operation, each with two 6.3 mm jack output sockets L+R connected in parallel, or 1 x 600 W @ 4 ohms for mono operation over a 6.3 mm jack output socket L+R (bridged).
Additionally, one power amplifier with 300 W @ 4 ohms is available for monitor operation with two 6.3 mm jack socket outputs connected in parallel.
EFFECT-SECTION
Effects processor with adjustable effect values such as Reverb-Time (0-10ms), Delay-Time (0-1000ms), Delay-Feedback (0-100%) and Delay/Reverb balance control. The effects can be added to the monitor way and separately to the master out (L/R and bridged L+R). The effects may be externally switched ON/OFF via the foot switch jack socket. Effect-send AUX for external effects devices.
MASTER-SECTION
The mixer features three 7-band graphic equalizers, relating to stereo master L/R, mono master L+R (bridged) and monitor master, as well as monitor out and main L/R out.
Furthermore, the mixer has master level controls with LED meter displays and a mode switch for selecting between mono L+R (bridged) and stereo L/R.
Monitor-Out and Main L/R-Out.
.
|
|
.
|
|
.
|
|
.
|
|

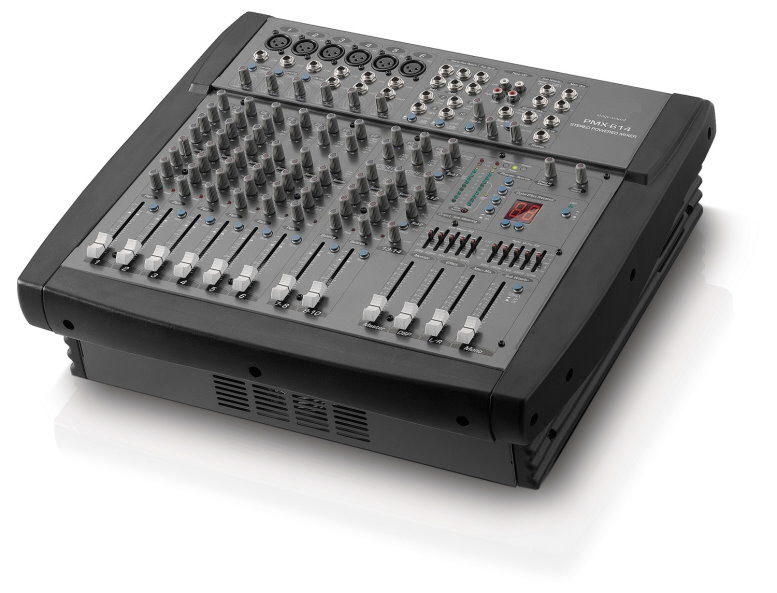

STAGE-SOUND PMX-614 - POWER Mixer, 2 x 300W - 10 Kanalov
|
|
|
|
POWER MIKSER: PMX-614 - 2 x 300W
Vhodi CH1-6: (mono)
Vhodi CH9-14: (stereo)
Vhodna občutljivost: Mic In: -55dBu (1,38mV) 50-600 Ohm, Line In: -35dBu (13,8mV), 600 Ohm, Stereo In: 0dBu (775mV), 600 Ohm
Zmogljivost: 2x 300/450W na 4 Ohm; 2x 200/340W na 8 Ohm
Izhodna občutljivost: Tape-Out (L/R): 600Ohm, -10dBu (245mV) vsi drugi izhodi 600Ohm, +4dBu (1,23V)
Signal šum: bolje kot 97dB
Frekvenčni razpon: 20Hz – 20kHz +1 / -2dB
Nastavitev zvoka Channel
Visoki toni: 12kHz shelving ±15dB
Srednji toni: 2,5kHz peaking ±12dB
Srednji toni CH 1-4: semiparam. 100Hz-8kHz ±12dB
Nizki toni: 80Hz shelving ±15dB
Low Cut: 18dB/Okt. @ 75Hz
Fantomsko napajanje: +48V DC
Napajanje: 220V – 240V/AC, 50~60 Hz
Moč: ca. 900W
Mere / Teža: Š 470 x V 405 x G 148 mm 16 kg
INPUT-SECTION
6 mono input channels can be supplied as MIC over XLR sockets or as LINE over 6.3 mm jack sockets. CH 7/8 & 9/10 can be operated mono (L) and stereo (L/R). CH 11/12 & CH 13/14 used as stereo AUX returns or as LINE level CH.
CH 1-6 have pre-amplifying controls for MIC “Gain“ and for LINE “Trim“. CH 7/8 & 9/10 have input level switches. CH 1-3 are equipped with low-cut switches and a 3-band channel-EQ with semi-parametric mids. CH 4-10 feature a 3-band CH-EQ. There are panorama controls for mono and balance controls for stereo CH (except for CH 11-14).
Pre-listening to all CH and monitor sum, main L/R, mono out and AFL/PFL is possible with an adjustable headphone output. 2 pre-fader and one post-fader AUX ways per CH as well as CH-insert for CH 4-6 PRE-Fader/PRE-EQ.
Phantom power is centrally switchable for all MIC inputs.
AMP.-/ MASTER-SECTION
The main amplifier output (L/R, each 300 W @ 4 ohms) has 2 speak-on output sockets or 2 jack sockets, connected in parallel, which can be adjusted by a stereo master fader (L+R) over a LED meter display and a graphic-EQ L/R. Amp-mode, either L+R monitor or L/R stereo, selectable.
2 RCA in-/output sockets with level control and solo switch serve for 2-track IN/OUT (L/R). A mono-fader with switchable LPF serves for subwoofer-out, main L/R and monitor pre-amp out for external power amplifiers.
EFFECT-SECTION
A switchable 24-bit digital effects board enables to add 99 high-grade effects with a DSP master fader to the sum and with another control also to the monitor way. Easy to handle over digital display with up/down push-button.
HIGHLIGHTS
Use of the internal power amplifier and the master EQ automatic switch-off of the mixer section over amp-input.
The mixer PMX-614 is designed to be tabletop unit or for integration into 19˝ racks. The 19˝ mounting angles “RMK-14 P” (9 RU) are optionally available.
.
|
|
.
|
|
.
|
|
.
|
|
.
|
|

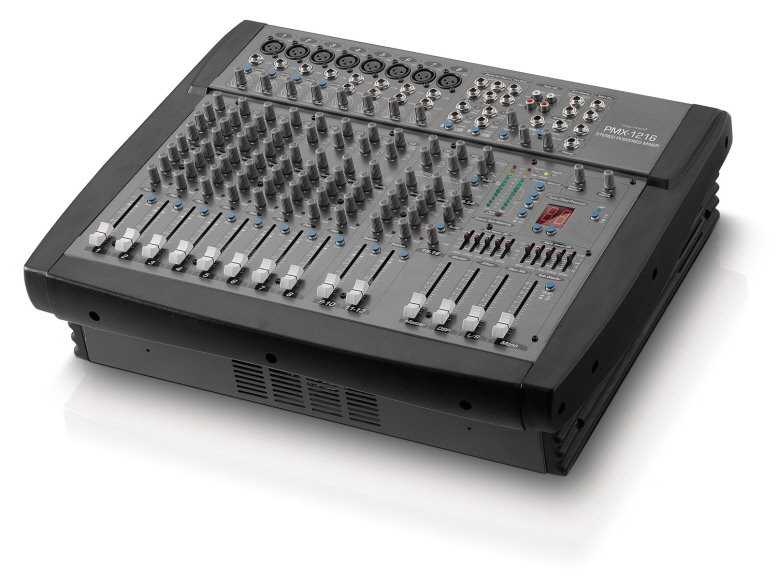

STAGE-SOUND PMX-1216 - POWER Mixer, 2 x 600W - 12 Kanalov
|
|
|
|
POWER MIKSER: PMX-1216 - 2 x 600W
Vhodi CH1-8: (mono)
Vhodi CH9-16: (stereo)
Vhodna občutljivost: Mic In: -55dBu (1,38mV) 50-600 Ohm; Line In: -35dBu (13,8mV), 600 Ohm; Stereo In: 0dBu (775mV), 600 Ohm
Zmogljivost: 2x 600/900W na 4 Ohm; 2x 350/520W na 8 Ohm
Izhodna občutljivost: Main-Out L/R, Mono-Out, Aux-Send 1/2, Monitor-Out: 600Ohm, +4dBu (1,23V) Tape-Out (L/R) 600Ohm, -10dBu (245mV)
Signal šum: bolje kot 97dB
Frekvenčni razpon: 20Hz – 20kHz +1 / -2dB
Nastavitev zvoka Channel
Visoki toni: 12kHz shelving ±15dB
Srednji toni: 2,5kHz peaking ±12dB
Srednji toni CH 1-4: semiparam. 100Hz-8kHz ±12dB
Nizki toni: 80Hz shelving ±15dB
Low Cut: 18dB/Okt. @ 75Hz
Fantomsko napajanje: +48V DC
Napajanje: 220V – 240V/AC, 50~60 Hz
Moč: ca. 2.200W
Mere / Teža: Š 515 x V 405 x G 148 mm 16 kg
INPUT-SECTION
8 mono input CH, which can be supplied over MIC (XLR sockets) or LINE (6.3 mm jack sockets). CH 9/10 & 11/12 can be operated mono (L) and stereo (L/R). CH 13/14 & CH 15/16 may be used as stereo AUX returns or LINE level CH.
CH 1-8 have pre-amplifying controls for MIC “Gain“ and LINE “Trim“. CH 9/10 & 11/12 have an input level switch. CH 1-4 are equipped with low-cut switches and a 3-band CH-EQ (semi-parametric mids). CH 5-10 feature a 3-band CH-EQ. There are panorama controls for mono and balance controls for stereo channels (except for CH 13-16).
Pre-listening to all channels and listening to monitor sum, main L/R, mono out and AFL/PFL is possible with an adjustable headphone output. 2 pre-fader and one post-fader AUX ways per CH and CH-insert for CH 5-8.
Phantom power is centrally switchable for all MIC inputs.
AMP.-/ MASTER-SECTION
The main amplifier output (L/R, each 600 W @ 4 ohms) has two speak-on output sockets or two jack sockets connected in parallel, adjustable by a stereo master fader (L+R) over a LED meter display and a graphic-EQ L/R. Amp-mode, L+R monitor or L/R stereo selectable.
2 RCA in-/output sockets with level control and solo switch serve for 2-track IN/OUT (L/R). A mono-fader with switchable LPF serves for subwoofer out, Main L/R and monitor pre-amp out for external power amplifiers.
EFFECT-SECTION
A switchable digital effects board enables to add 99 high-grade effects with a DSP master fader to the sum and to the monitor way. Easy to handle via digital display with up/down push-button.
HIGHLIGHTS
Use of the internal power amplifier and the master EQ automatic switch-off of the mixer section over amp-input.
The mixer PMX-1216 is designed to be tabletop unit or for integration into 19˝ racks. The 19˝ mounting angles “RMK-16 P” available on option.
|
|
.
|
|
.
|
