BA-2240DP 2-Channel Power Amplifier (2x 240 W, 2 RU), prepared for FD-20

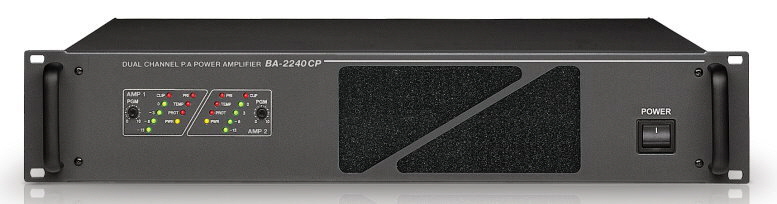

BA-2240CP PA AMPLIFIER 777 X

DescriptionKONČNE STOPNJE, OJAČEVALNIK, 100V OJAČEVALNIK

These 19" 2-channel power amplifiers are fully monitored and ideal for the use in professional audio applications with 100V, 70 V and 25 V line systems.
The amplifier have malfunction message contacts for all relevant functions in case of emergency.
The devices are manufactured in state-of-the-art production processes using high-quality components such as toroidal transformers.
They have beeen designed for continous operation. They are absolutely short circuit and open circuit proof and are equipped with all relevant protection devices.

Features

Allt the 2-channel amplifiers of the "DP" series have 2 electronically balanced audio inputs for programs and one input (with priority) for priority announcements, etc.
Each power amplifier can be equipped with 1 pilot tone module (FD-20) which monitors the performance of the amplifier.
The amplifiers have electronically balanced inputs on screw-type connectors. Possible hum pick-up from ground loops is avoided through the balanced inputs and outputs.
The screw-type connectors substantially facilitate the wiring for signal input. Time consuming fitting of the input cables with XLR connectors is eliminated.
By means of a "Power Remote" contact the amplifier can be switched on, even if the power swith is in the off position.
The multicoloured LED indicators located on the front üanel continuously indicate the operating status of the amplifier including protection functions and possible dangers.
All models feature "SOFT START" and a special circuit which suppresses unpleasant switch-on noise.
A groundlift switch is provided to disconnect signal ground from chassis (shielding), in order to avoid any hum pick-up.

Technichal data	BA-2240 DP
Output power	2 x 300/240 W (program/RMS)
Input sensitivity	0 dB (0,775 V), 66 kohms, balanced
Output impedance	25 V, 50 V, 100 V
Frequency response	35 ~ 20.000 Hz (better than -3 dB)
Signal-to-noise-ratio	better than 100 dB
THD at 1 kHz	better than 0,5%
Input filter	400 Hz / -3 dB
Power consumption	1300 W
Current consumption (230 V)	3.1 A at 1/8 power current draw 7.4 A at rated power current draw
AC power supply	230 V, 50 – 60 Hz
DC power supply	24 V (emergency power supply)
Dimensions (W x H x D in mm)	483 x 88 x 374; 2 RU
Weight	approx. 19,2 kg

Vse informacije so brez jamstva, tehnične spremembe so možne kadarkoli
