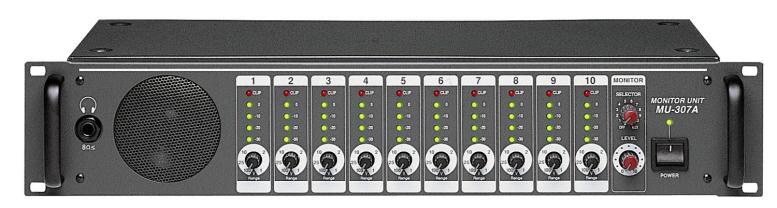

MU-307A - Active Monitor unit 2 HE

MU-307A 777 X

Description

The MU-307A monitor unit serves for the audible and visual monitoring of amplifiers as well as of pre-amp outputs.
The system is incorporated in a stable 19˝ housing (2 RU) and can be used with 100 V line systems as well as for low-impedance applications. A high-quality full range speaker and a headphone output facilitate continuous monitoring.
The monitor speaker and the headphone output have separate volume controls. The line volume is set through controls located on the front panel. Level indication is also on the front panel through multicoloured LED chains.

Features

Up to 10 programmes can be monitored. Channel selection is performed by means of the multi-position selector switch. A 5-segment level indicator LED is provided for each line.
The volume of the monitor speaker or the headphone is continuously variable.
Each of the 10 monitor inputs can be set to the required input voltage (1 – 100 V) by means of a special control on the front panel.
The unit operates on mains power (230 V AC) as well as on DC power (24 V DC), for example, in the case of a power failure (emergency power supply).

Tehnični podatki	MU-307A
Vgrajen zvočnik	Širokopasovni, 2 W z regulatorjem glasnosti
Izhod za slušalke	max. 1,0 W min. 8 Ohm, z regulatorjem glasnosti
Vhodna napetost	1 V - 100 V
AUX-Vhod	0 dB, 10 kOhm, symm.
Nadzorni kanali	10,
Poraba	max. 12 W
Napajanje	AC 120 V, 220 V, 230 V, 240 V (50 -“ 60 Hz), DC 24 V
Mere (Š x V x G)	483 x 88 x 200 mm (19Ë, 2 HE)
Teža	ca. 4,7 kg

Vse informacije so brez jamstva, tehnične spremembe so možne kadarkoli
