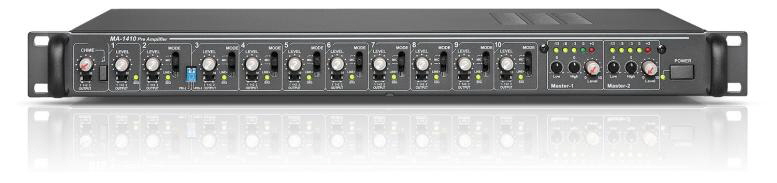

MA-1410B - 10-Kanal-Predojačevalnik, 1 HE

OPIS

MA-1410 B je 10 kanalni profesionalnI mešani predpojačevalnik za splošno ozvočenje ima 10 audio vhodov ter  nadzor in preklopno izhodno stikalo za master 1, in master 2. Poleg tega imajo vsi 10 vhodni kanali MIC-LINE switch.
Napravo se lahko upravlja z električno omrežje 230 V AC, vendar tudi z enosmernim tokom 24 DC (kot rezervno napajanje).

• The unit includes an electronic 2-tone chime  (selection can be made on the device). The chime can be activated  manually on the front panel or automatically as pre-announcement chime  via the VLM-100 desktop microphone station (P.T.T. RJ 45 input).
• The chime type is switchable with jumper to 4 chime tone inside the device.
• The chime volume can be adjusted on the front panel. Additionally, there is another contact terminal on the rear which permits chime remote  control.
• All input channels (10 + chime) have a selector switch  on the front panel for switching the signal to master output 1, 1 + 2 or 2.
• The input channels 1 (P.T.T.), 2 and 3 (2 and 3 switchable)  as well as the electronic chime automatically have priority (voice  recognition) over input channels 4 - 10, which then are attenuated.
• Input channels 2 - 10 have a 3-position switch on the front panel which  serves for the signal routing to LINE-MIC and the low-cut filter (300  Hz).
• All input channels have XLR sockets. Inputs 7 – 10 are additionally equipped with RCA sockets for line signals.
• Each input channel has a separate signal LED indicator.
• All MIC inputs have phantom power (+15 V DC). This means that both electret condenser microphones and balanced dynamic microphones can be connected to the XLR MIC inputs.
• Both master output channels have a  dual-band equalizer and can be controlled separately on the front panel. Additionally, there is another output (REC-OUT) with RCA sockets.
• Multicoloured 5-segment master output level LED chains indicate the level for each channel.
• Apart from the numerous features such as balanced inputs and outputs, the  10-channel mixer preamplifier offers excellent sound characteristics,  ease of installation and operation..
